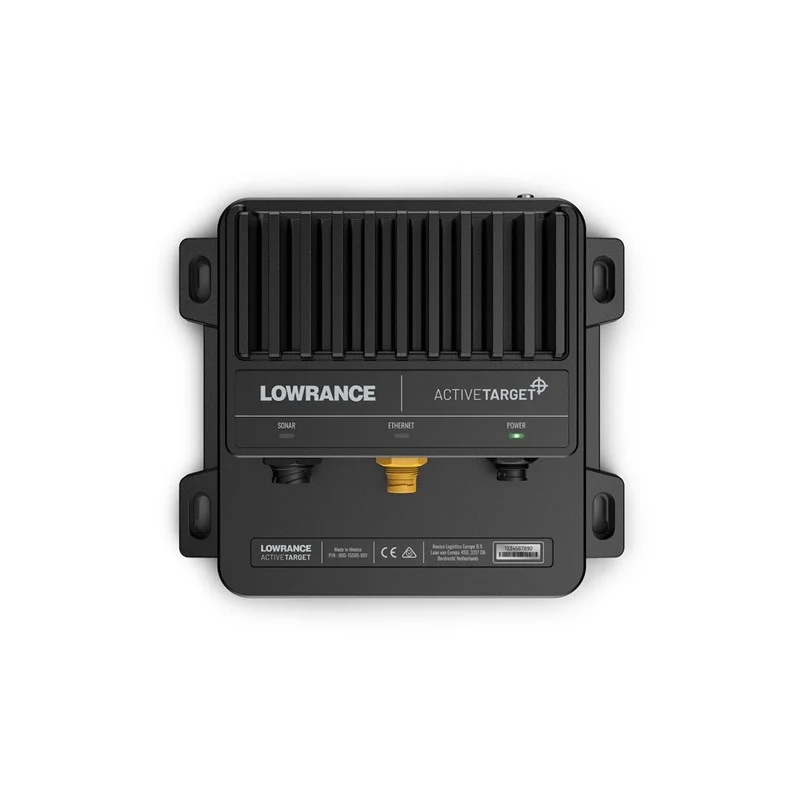

Devēja modulis Lowrance ActiveTarget™2 Module Only
Prece ir jaunums, tāpēc tā ir pieejama uz pasūtījumu, iepriekšēju rezervāciju!
See high-resolution images of fish swimming around structure and responding to your lure – as it happens – with new ActiveTarget™ Live Sonar. Featuring Forward, Down or Scouting views, ActiveTarget Live Sonar can scan fish locations and easily track their movements. See how fish relate to structure and respond to lure presentations, so you can make the right adjustments to make them strike.
Specifikācija
Connectivity
Ethernet Ports: Yes: 1 - 100 Mbit Ethernet Port
Electrical
Power Consumption max: 1.5A @ 13.8VDC
Power Consumption typical: 1.5A @ 13.8VDC
Recommended Fuse Rating: 3A
Supply Voltage: 10.8 VDC - 31.2 VDC
Environment
Humidity: 60°C, 95% relative humidity (RH) for 18 hours
Operating Temperature Range: 5°F to 131°F (-15°C to 55°C )
Shock Vibration: 100,000 cycles of 20 G
Storage Temperature Range: -22°F to 158°F (-30°C to 70°C )
Waterproofrating: IP67
Physical
Dimensions W x H x D: Module: 8.63" (219.3mm) x 7.56" (192.1mm) x 2.86" (72.9mm) Transducer: 5.90" (149.8mm) x 3.24" (82.4mm) x 2.28" (58.0mm)
Mounting Type: Module: Surface Mount Transducer: Bracket Mount
Weight: Module: 4.12 lbs (1.86 kg) Transducer: 2.67 lbs (1.21 kg)
Other
Interface: Ethernet to: HDS Pro HDS Live HDS Carbon Elite FS
Warranty Period: 1 Year + 4 additional years of upgrade options Totaling 5 years
| Ražotājs: | LOWRANCE |
